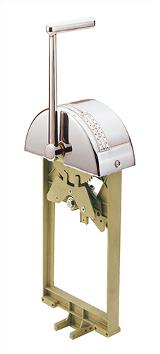

2091 / 2093 - Two Station Single Lever Mechanical Control Heads

The 2090 Series is a two station mechanical control system, with one head acting as a master control and one as a remote control. Both controls work in tandem, moving at the same time to sync controls across multiple stations.

The 2091 / 2093 are solid bronze and stainless steel control heads that are typically used in a single engine configuration, with clutch and throttle functionality built into the single lever. The 2091 has a pull-out handle for overiding throttle.

The 2091 maximum clutch stroke is 2 3/4" (70mm) and maximum throttle stroke is 2 1/4" (57mm), and requires a cable connection kit that typically uses 30 Series or 40 Series cables.

Part Numbers In This Series:

#   2091-CLA, 2091-HCLA, 2091-HKU, 2091-HKUZ, 2091-HKV, 2091-HKVZ, 2091-HKY, 2091-HKYX, 2091-HKYZ, 2091-HKYZX, 2091-HLU, 2091-HLUZ, 2091-HLV, 2091-HLVZ, 2091-HLY, 2091-HLYZ, 2091-HMU, 2091-HMUZ, 2091-HMV, 2091-HMVZ, 2091-HMY, 2091-HMYZ, 2091-IKYZ, 2091-KU, 2091-KUZ, 2091-KUZT, 2091-KV, 2091-KVZ, 2091-KY, 2091-KYX, 2091-KYZ, 2091-KYZS, 2091-KYZT, 2091-KYZX, 2091-LU, 2091-LUZ, 2091-LV, 2091-LVZ, 2091-LY, 2091-LYZ, 2091-LYZS, 2091-MU, 2091-MUZ, 2091-MV, 2091-MVZ, 2091-MY, 2091-MYZ, 2091-MYZS, 2091-MYZT, 2091-MYZX, 2091-MYZXS, 2091-MYZXT, 2093-2KYZ, 2093-6500, 2093-CLA, 2093-KU, 2093-KUZ, 2093-KUZT, 2093-KV, 2093-KVX, 2093-KVZ, 2093-KY, 2093-KYX, 2093-KYZ, 2093-KYZT, 2093-KYZX, 2093-LU, 2093-LUZ, 2093-LV, 2093-LVX, 2093-LVZ, 2093-LY, 2093-LYZ, 2093-LYZS, 2093-MMY, 2093-MSYZ, 2093-MTYZ, 2093-MU, 2093-MUZ, 2093-MV,, 2093-MVX, 2093-MVZ, 2093-MY, 2093-MYZ, 2093-MYZT, 2093-MYZX, 2093-MYZXS, 2093-MYZXT

Common Features & Options

   Requires Additional Control Head
  Bronze & Stainless Steel Construction
   Multiple Station Configuration

Common Related Products

2095, 2097
